Packaging Testing Equipments

Description :

Electronic Box Compression Tester is used to determine the compression strength of corrugated & non-corrugated boxes. The instrument is provided with Digital display of compressive load for determination of box compression strength. Instrumenty is supplied with memory for retaining peak value,automatic or normal zero setting, motorized version with AC drive and AC geared motor. It provides variable compressive speed ,overload and over travel protection facilities.

This Instrument is used to determine the compression strength of corrugated box. Our Microprocessor based model is the most advance model in Packaging Industry

Features:

Our Box Compression Tester in a Microprocessor based.

Heavy Duty tester to determine the compression strength of the corrugated box. Load range selected to completely collapse as Peak load or may be with pre-determined load for a given period to evaluate stacking load.

Standards:

As per TAPPIT-804, DIN EN 22872.

Description:

A laboratory corrugating machine with digital temp. Controller for producing a sample to evaluate flat crush resistance of corrugating medium. 'A' fluting rolls are heated up to 176° C and maintained with a constant digital temperature controller. Standard model available with 'A' flute.

Sample size 0.5 inch x 6 inch

Description:

Manual Core/ Cone Compression Tester is an equipment to test paper tubes/ cores & cones for:

Radial Compression/ Crush.

Flat Horizontal Compression /Crush.

Flat Vertical/Crush.

Salient Features:

• Machine designed on proven principle of pneumatics.
• Easy and safe to operate.
• Skilled manpower is not required.
• Zero maintenance machine.
• Provides in – house quality control system at affordable price.
• Highest degree of consistency and reliability

Application Standards ASTM D 3654:

Option 50/100 Kg Cast iron weight Regular / Deluxe / Digital Model

Description:

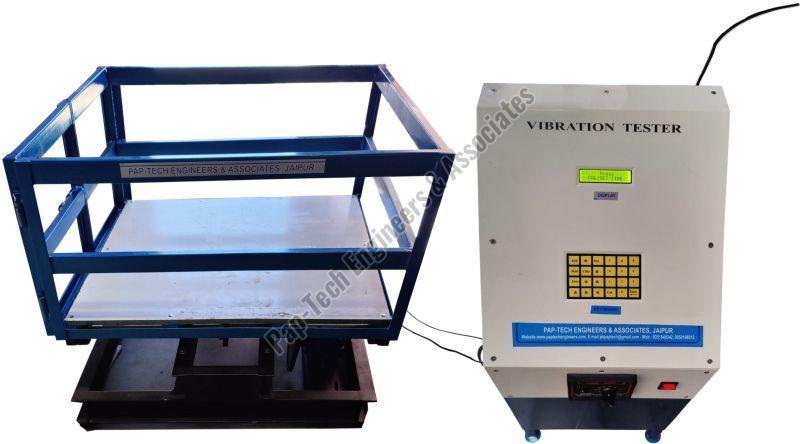

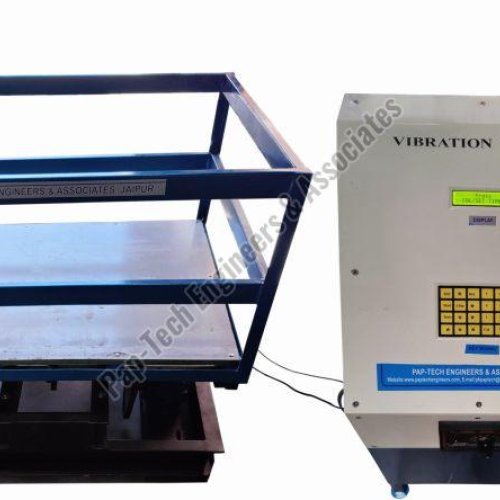

Vibration Tester determines effect on filled packages during transit. Rectangular platform with side work accommodates the packages package size will be 700mm x 700mm. It is equipped with fixed speed DC motor drive power supply will be 230volt / 50 Hz DC. Vibration test is carried out to assess the performance of a filled package in terms of its strength of protection that it offers to its contents when subjected to vibration. This test method stimulates the transport hazards to produce an equivalent effect or damage during the test maximum weight of contains will be 50 kgs.

Paper Thickness Micrometer

The Paper Thickness Micrometer is designed to measure the thickness of flat sheet specimens with precision. It is ideal for testing the thickness of paper, cardboard, and similar materials, adhering to industry standards.

Key Features:

• Accurately measures paper and cardboard thickness.


• Suitable for quality control and testing purposes.


• Reliable and easy to use for flat sheet specimens.

Description:

Drop Tester is designed to ascertain in the laboratory the resistance to rough handling of various types of packaging and is used in both Q.C. (quality control) and R&D (research & development) test routines. Several types of packaging can be tested e.g. card board boxes, pails, bags and containers. Catering for the following types of drops e.g. flat corner & side. The Precision Drop Tester has an open construction arrangement which does not restrict the test sample geometry in height and width. The Drop Tester lifts the pads to the test height saving the operator from injury. accelerating faster than 1G and ensuring precise drop orientations. Its rugged and simple design enables long working periods with minimal maintenance requirements and maximal performance by providing to the user accurate test results with high repeatability.

Salient Features :

• A precise and reliable machine.
• Sturdy in construction.
• Precisely machined to International Standards.
• Fitted with angular drop arrangement for checking transport-worthiness form all angles.
• Costs less then half of the similar imported tester saves valuable foreign exchange too.
• Facility for corner droops.

Description:

The Motorised Drop Tester is designed to ascertain in the laboratory the resistance to rough handling of various types of packaging and is used in both Q.C. (quality control) and R&D (research & development) test routines.Several types of packaging can be tested e.g. card board boxes, pails, bags and containers. Catering for the following types of drops e.g. flat corner & side.The Precision Drop Tester has an open construction arrangement which does not restrict the test sample geometry in height and width. The Drop Tester lifts the pads to the test height saving the operator from injury. accelerating faster than 1G and ensuring precise drop orientations.Its rugged and simple design enables long working periods with minimal maintenance requirements and maximal performance by providing to the user accurate test results with high repeatability.Salient Features :A precise and reliable machine.Sturdy in construction.Precisely machined to International Standards.Fitted with angular drop arrangement for checking transport-worthiness form all angles.Costs less then half of the similar imported tester saves valuable foreign exchange too. Facility for corner droops. BOX SIZE 450X450

Description:

It is used to check and evaluate the interfacial adhesion properties of flexible packaging material by retaining peak values,automatic or normal zero setting, overload and over travel protection facilities.

Digital peel tester is used for measuring the peeling strength of seals and lamination on in materials like laminates and laminated sheets. The machine will consist of a digital indicator with auto peak hold button on the indicator to measure the peel/ bond strength in grams, with a least count of 5 grams and a maximum reading of up to 10 kgs.

Salient Features:

• Fixed Speed model.
• Scaled down version of Generic Tensile Tester.

Standards:

As per TAPPI, SCAN, ISO

Description:

This instrument measures puncture resistance of various packing materials and gives reliable indication to evaluate fabrication factors with material values in a composition fashion. The puncture resistance of paperboards is measured as the energy required to force a puncture head of specific design through a test piece of board under specified condition. The test specimen is clamped between two horizontal plates in each of which is a triangular hole. The Puncture Tester has a very heavy chest iron stand in order to avoid disturbing vibrations during a test.

Technical Specifications:

• 0-5 Nm Scale division 0,1 Nm
• 0-10 Nm Scale division 0,2 Nm
• 0-20 Nm Scale division 0,2 Nm
• 0-36 Nm Scale division 0,2 Nm

It is used for accurate testing of Paper, Paperboard, solid Fiberboard & Corrugated board for RCT, ECT, CCT test and its components as well as performing compression test on all small FCT packages.

An efficient and easy-to-use instrument intended for testing corrugated board and its components as well as performing compression test on all small packages. The sturdy design of the instrument ensures that parallelism of the plate is maintained for accurate results. The instrument is available in two versions - the metric version and the imperial version.

Technical – Specification :

• Measuring Results : Breaking Force in Newtons.
• Measuring Range : 0 - 5000 N and 0 - 1999 N (Metric Version).
• Accuracy : ± 1% of measured value but not better than 0.5% of the
• nominal value.
• Rupture Sensitivity : 2 - 20 % of the relevant maximum load.

Standards:

• As per TAPPI standard 1301 FEFCO NO. 50, CPPAD 24, ISO 7263, SCAN P27, TAPPI T809, ISO 3037, SCAN P33 & SCAN P32.

Other Details:

• Microprocessor Models are available to be connected with computer & printer for memory with past results.

Description:

We specialized in offering a premium quality range of Scuff Tester. Offered Scuff Tester is developed employing quality-proven material and high-end technology in conformation with current market standards. Our scuff tester is used to measure or evaluate color transfer from printed / coated surface during rubbing. Customers can avail the offered scuff tester from us in various specifications in a given time frame. Scuff tester is used to evaluate the Rub Proofness of Prints on Paper or Board.It can also be used to evaluate colour transfer from printed/coated surfaces during rubbing.

Standard:

As per BS 3110.

Features:

• User friendly control
• Very low noise level
• Low maintenance
