Description:

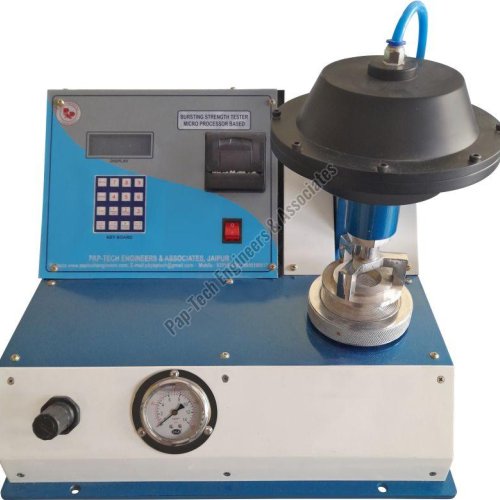

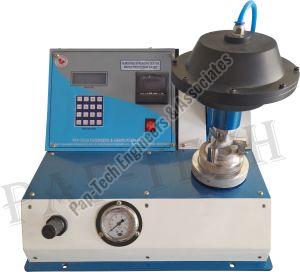

Pneumatic Single Head Bursting Strength Tester with printer determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by pneumatic pressure in two heads.



It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in pneumatic system for the diaphragm, quick connector for calibration, built-in electronics microprocessor and printer and exclusive.





You can also store 250 readings in your memory card



Process

You can check Bursting Factor of the Paper/Board Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System and with print



Technical - Specification:

  • Measuring results : Individual Bursting Strength values in Kpa or Kg/cm² and burst factor for paper
  • Pump flow rate : 95 ± 5 ml/min.
  • Measuring range : 0-7 kg/cm² or 0-35 kg/cm2
