1.70 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brochure |  View |
| Brand Name | PAP-TECH |
| Material | Mild Steel |
| Click to view more | |
Product Details
Finishing
POlished
Condition
New
Power Source
Electrical
Feature
DURABILITY OF PAPER / NUMBER OF FOLDS
Voltage
200- 220 V
Model
PAP- 2074 B
Testing of Paper
0.25 mm thickness of Paper
Specimen width
15 mm
Specimen length
98 mm
Clamping length
90 mm
Working speed
120 strokes /min
Power Supply
1 Phase, 220 +- 10% V AC, 50 Hz
Standards
As per TAPPIT-833,ISO-5626
Warranty
1 YEAR
Country of Origin
India
Product Code
PAP-2074 B
Port
SAFEEXPRESS / VRL
Payment Terms
T/T, Other
Delivery Time
4-5 WEEK
Packaging Details
WOODEN PACKING CHARGES EXTRA.
FREIGHT & INSURANCE TO BE COVERED BY THE BUYER.
GST: 18%
FREIGHT & INSURANCE TO BE COVERED BY THE BUYER.
GST: 18%
Description:

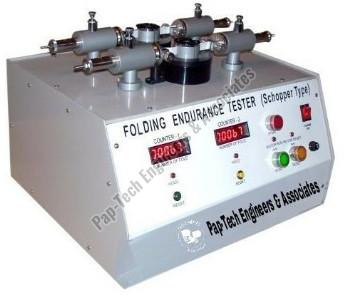

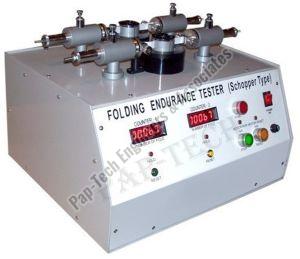

In schopper type tester loading clamps of spring type gives standard load of 1000gm during the test provided along with FIVE FIGUR COUNTER having hold and zero setting.
Standards:
As per TAPPIT-833,ISO-5626
Additional - Specification:
- Working Unit : Two separately working folding units for quicker test.
- Stretching force : Maximum 9.81 N and Minimum 7.55 N
- Folding Roll Diameter : 6 mm
- Distance Between folding rolls : 0.5 mm
- Deflection on either side : 10 mm
