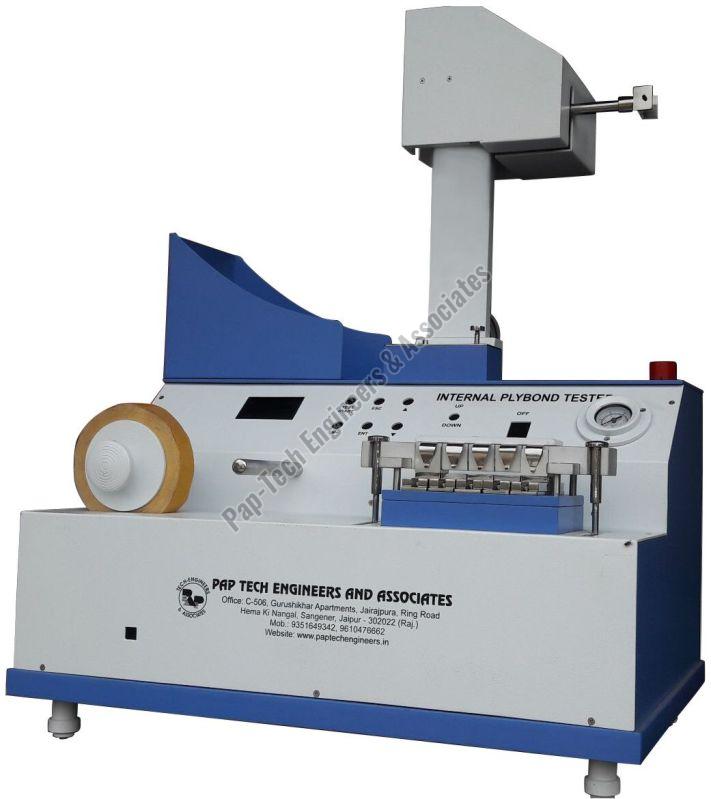

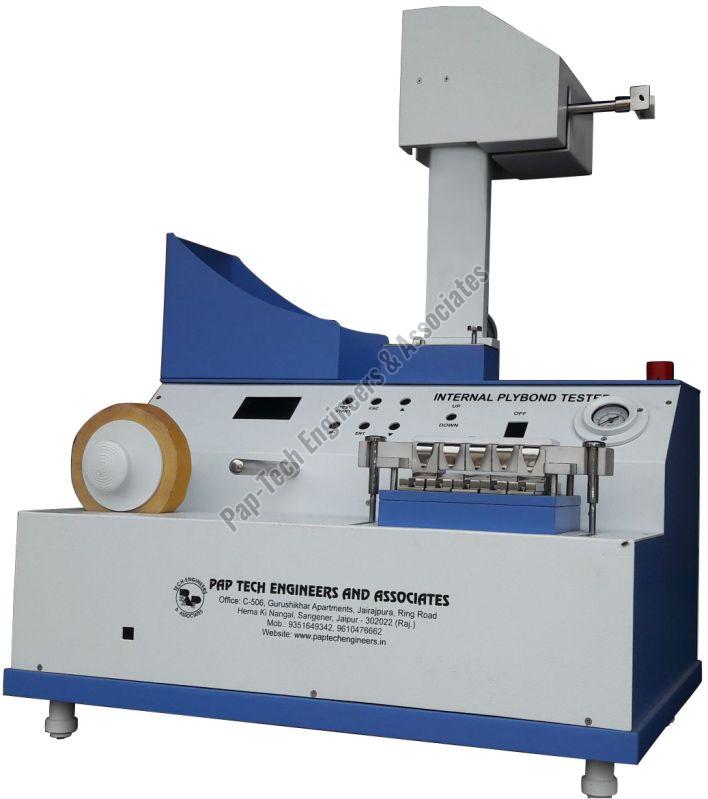

Pneumatic Ply Bond Tester

Our Internal Ply Bond Tester is engineered to determine the Internal Bonding Strength of Paper, Paperboard, and Laminates, as per the TAPPI Routine Control Method RC-308. The device measures the average energy required (in thousands of foot-pounds) to delaminate a specimen into two piles, ensuring precise evaluation of bonding strength critical for product quality assurance.

This newly upgraded model offers enhanced accuracy and time efficiency, making it an indispensable tool for laboratories and industries focused on paper and board performance testing.

Key Features:

• Heavy Cast Iron Base: Provides stability and ensures reliable, vibration-free testing.
• Built-in Leveling Device: Guarantees precision alignment for accurate results.
• Pneumatic Air Supply: Facilitates automatic sample clamping through air pressure, streamlining operations.
• Pressure-Sensitive Tape Dispenser: Integrated with the base for ease of sample preparation.
• New Upgraded Model: Enhanced accuracy and efficiency, designed to meet the latest industry demands.

Technical Highlights:

• Measuring Range:
  • 0.0–250 ft-lb
  • 100–500 ft-lb (in thousands)
• Clamping Pressure: Adjustable from 50 to 200 psi using supplied spacer rings.
• Base Material: Heavy-duty cast iron for durability and robustness.
• Air Supply: Operates on pneumatic air for consistent clamping.

Accessories Included:

1. Calibration Jig Attachment: Includes a set of calibration weights for verifying device accuracy.
2. Spacer Rings: Ensures optimal clamping pressure for varied sample thicknesses.
3. Pressure-Sensitive Tape Support: Simplifies sample preparation for testing.

Benefits:

• Enhanced Efficiency: Automated clamping reduces operator influence and testing time.
• Precision Testing: Provides accurate, repeatable results critical for quality control.
• Durable Design: Built for rigorous lab and industrial environments.
• Ease of Use: Intuitive operation with minimal training required.

Applications:
The Internal Ply Bond Tester is ideal for evaluating internal bonding strength in:

• Coated Paper: To assess coating adhesion and bonding strength.
• Paperboard and Laminates: To ensure durability and resistance to delamination.
• Packaging Materials: For quality control in carton and corrugated box manufacturing.
