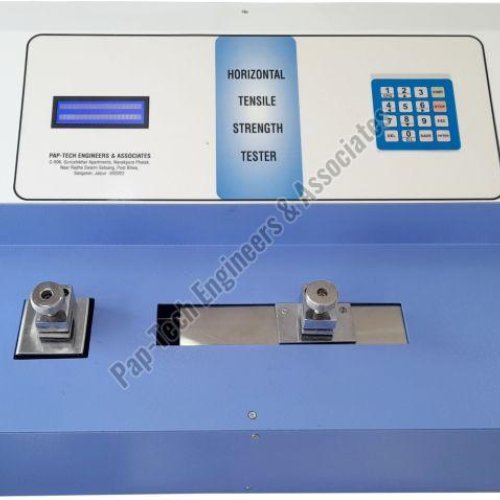

Horizontal Tensile Strength Tester

Link Copied
2.50 Lac / piece
Business Type Manufacturer, Exporter, Supplier
brochure View
Application Strength Testing
Automation Grade Automatic
Click to view more

Product Details

Power
1-3kw
Condition
New
Color
Grey, Light White
Brand Name
PAP-TECH
Power Supply
1 Phase
Analog Output
Force Value 0-10 V
Clamps
15mm or 25mm
Measuring Range
Stretch at break 0-70% at clamping length 100 mm.
Model No
PAP-2065-B
Pulling Speed
1-99 mm/ min (0-04-4.0/min).
Product Code
PAP-2065 B
Port
SAFEEXPRESS / VRL
Payment Terms
T/T, Other
Delivery Time
4-5 WEEK
Packaging Details
WOODEN PACKING CHARGES EXTRA.
FREIGHT & INSURANCE TO BE COVERED BY THE BUYER.
GST: 18%

Description:

The Microprocessor Based Horizontal Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials.



Horizontal Tensile Strength Tester - User friendly software guides the operators through all steps of program selection, parameter modification and sample test to minimize to human error during test to provide rapid and efficient determination of tensile strength, stretch, tensile energy absorption (TEA) and tensile stiffness of paper and paperboard with in-built printer, fitted with imported load cell.



Technical - Specification :

Clamping Length : Selected.

Accuracy : ± 1% of reading down to 10% of the load cell capacity.

Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement.

Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software.
