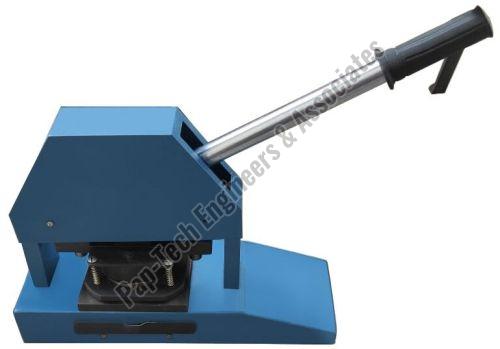

Punch and Die Cutter for Circular Sample Cutter

The Punch and Die Circular Cutter is designed for accurate and rapid preparation of circular test samples, specifically for use with GSM Testers. Its manual operation ensures simplicity and precision, making it ideal for consistent sample preparation.

Key Features:

• Precise Sample Preparation: Delivers consistent and accurate circular cuts for GSM testing, eliminating errors due to improper sample preparation.
• Robust Manual Clamping: Includes a handle-operated cutting mechanism to apply the necessary cutting pressure with manual clamping for secure material handling.
• Durable Construction: Made from cast iron for long-term reliability and stability during operation.
• Efficient Design: The punch and die components ensure clean and precise cuts with minimal effort.

Components and Parts:

1. Punch: Generates the cutting force to shape the sample accurately.
2. Die: Receives the punched material and ensures a precise circular cut.
3. Base Plate: Provides a stable and robust surface for efficient operation.
4. Handle: Allows the operator to apply cutting pressure with ease.

Technical Specifications:

• Material: Cast Iron
• Weight: Up to 15 kg
• Sample Size: 100 cm²

Application Standards:

• TAPPI-489: Standard for test sample preparation in the paper and board industry.
• SCAN P-38: Scandinavian standard for paper testing.
